PRODUCTS > OPTICAL COMPONENTS > PRISM> ANAMORPHIC PRISM

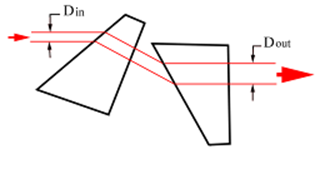

These two prisms can expand or contract the beam in one direction without any changes in the other direction. By adjusting the angles among the incident beam and two prisms, the shape of the beam can be changed. It is very easy to turn elliptical bean into circular beam.

OVERVIEW

¡§ Specifications:

¡§ Material:  SF11 grade A fine annealed optical glass

¡§ Dimention Tolerance:  +0.0,-0.15mm

¡§ Clear aperture: >80% of the central area

¡§ Surface quality: 60/40 scratch and dig

¡§ Flatness: ¦Ë/8@830nm

¡§ Coating: MgF2 single layer on perpendicular surface

¡§ ¦È=29¡ã7'+/-30''

Standard Size

How to Order:

For Example: CNP0101

(Part Number)

Notes:

Other material and size are also available upon request.

Part No.

A(mm)

B(mm)

C(mm)

ANP0001

12.0

12.0

8.5
